FGTech V54 read & write LUCAS 1708 to 2005

Clone FGTech V53 and V54 FGTech reads and writes LUCAS 1708 to 2005 by the OBD2 cable + mini adapter + adapter VOLVO 8pin (FH12).

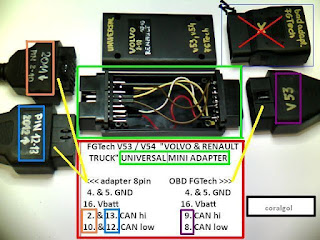

8-pin adapter pinouts:

4 & 5 —- GND

16 ——– Vbatt

2 & 13 — CAN hi

10 & 12 — CAN low

Fgtech v54 OBD cable pinouts:

4 & 5 —- GND

16 ——– Vbatt

9 ———- CAN hi

8 ———- CAN low
Up 2006 years (FH”13″) EMS2 by BDM only, because read only part of the data.
EUR 5 it’s EMS2.2 with MCP5554 … It does not support large memory MCP5554 by J-tag.

Good Luck!

(BIG THANKS to the contributor @coralgol1976 in the MH community;

obd2express holds no responsibility of what you try)
